Filters

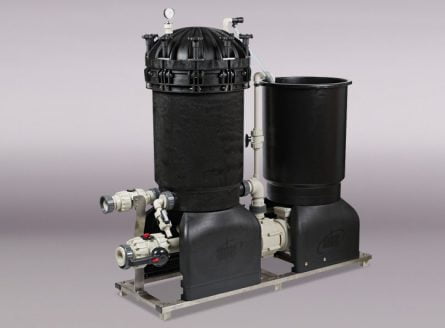

Filters and Pumps

TECHNICAL SHEET

Product Description: We offer a wide range of pumps, filters for industrial filtration and the transfer of your fluids as well as spare parts and consumables.

Pumps: Magnetic pump, Mechanical pump, Vertical pump, Diaphragm pump, Drum pump, Pneumatic pump, Centrifugal pump, Transfer pump, Dosing pump, Manual pump

Filters: Polypropylene filter, PVDF filter, Stainless steel filter, Plate filter, Gravity filter, Automatic filter, Bag filter , Basket filter.

Tip: Agitate your baths using the venturi system with stirring nozzles.

Areas of application: We offer pumps and filters for electrolytic surface treatment, the electronics industry, the chemical industry, the pharmaceutical industry, the food and agricultural industry.

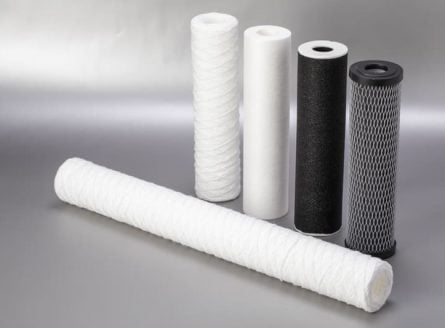

Filter cartridges

TECHNICAL SHEET

Types : Washed polypropylene wound cartridge, extruded cartridge, carbon cartridge, pleated cartridge

Standard dimensions: 10 inches, 20 inches, 30 inches, others on request

Filtration fineness: 1 / 5 / 10 / 25 / 50 / 100 microns

Product Description: Our filter cartridges are designed to fit most existing filter bodies on the market and allow efficient and multiple purification uses.

  • Wound cartridge for depth filtration with low flow loss
  • Extruded cartridge for absolute filtration
  • Carbon cartridge for filtration of organic elements
  • Pleated cartridge to increase filtration surface area



Areas of use:  the cartridges are used in pre-filtration or main filtration on your surface treatment baths. Other areas of use are the chemical, petrochemical, food, cosmetic industries, treatment of washing water and demineralized water.

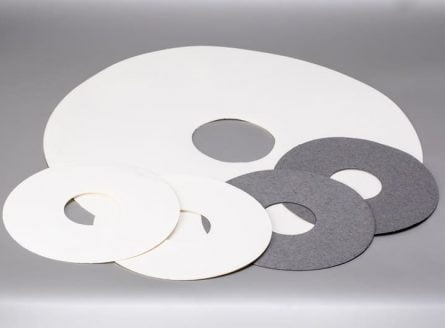

Filter papers & fabrics

TECHNICAL SHEET

Types : Thin papers, Thick papers, Cardboard papers, Crepe papers, Charcoal papers, PP/PVDF/PTFE fabric.

Standard dimensions:

  • Diameter 195 mm / Bore 62 mm
  • Diameter 205 mm / Bore 30 mm
  • Diameter 258 mm / Bore 40 mm
  • Diameter 300 mm / Bore 40 mm
  • Diameter 456 mm / Bore 100 mm

(Others on request)

Product Description: Our filter papers and fabric discs are designed to fit most filter bodies on the market and allow efficient and multiple purification uses.

Thin, thick and creped papers are used to retain sludge, sediment and impurities from the bath while the cardboard paper is used as a support for the construction of the media. Charcoal papers are used for preventive or curative filtration of organic elements.

Cloth discs are used for chrome baths and alkaline zinc baths.

Areas of use: filter papers are used in pre-filtration or main filtration on your surface treatment baths. Other areas of use are the chemical and pharmaceutical industries and water treatment.

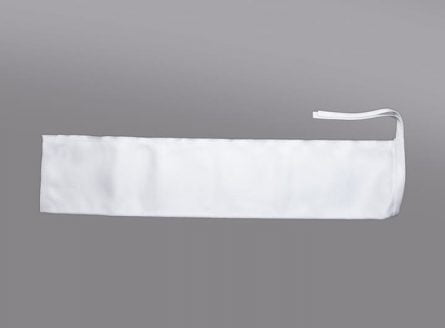

Anode bags

TECHNICAL SHEET

Types : Polypropylene anode bag, Disposable bag, Polyester bag

Standard dimensions: 650 x 130 mm, 750 x 130 mm, 850 x 130 mm, 950 x 130 mm, 1050 x 130 mm, 650 x 230 mm, 750 x 230 mm, 850 x 230 mm, 950 x 230 mm, 1050 x 230mm.

We also manufacture bags with specific dimensions that will fit your facilities.

Weight: 210 g/m2 , 270 g/m2 , 340 g/m2 , 600 g/m2 ( others on request)

Product Description: With a wide range of anode bags in terms of technical fabric, dimensions, shapes and fastening systems (halyard or cord), we meet most of your filtration needs . The most commonly used material is polypropylene because it can be used in most electroplating baths. Anode bags can be placed directly on your anodes or around your titanium baskets .

Areas of use: anode bags are used for pre-filtration or main filtration on your surface treatment baths.

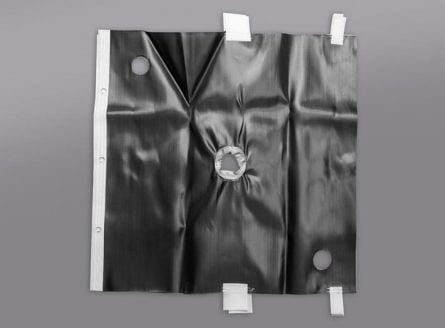

Filter cloths Press

TECHNICAL SHEET

Types : High performance black filter press cloth & White polypropylene filter press cloth

Standard tray dimensions: 250x250mm, 450x450mm, 470x470mm, 500x500mm, 630x630mm, 800x800mm (others on request)

We also manufacture canvases with specific dimensions that will adapt to your installations.

Product description: our range of filter press cloth meets most of your filtration needs in station. We offer polypropylene cloths. As an option, a central PVC sleeve for greater sealing can be added.

For over 15 years we have also developed high-performance black canvases whose advantages our customers have praised:

  • The fabric is specially designed to reduce the adhesion of “cakes” formed by mud on the canvases. This ease of removal improves your productivity and preserves the canvas over time.
  • The high-performance fabric dries your sludge much more, which leads to a reduction in treatment costs.
  • The canvases are made to measure according to your plans or on the model of an old used canvas. The types of attachments are by eyelet, by velcro strip or on request.

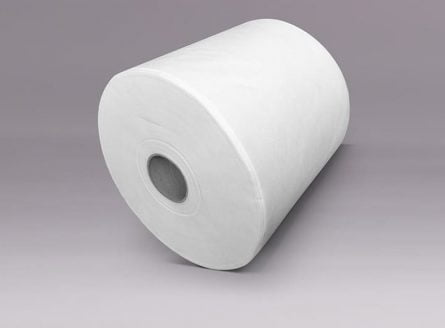

Filter rolls

TECHNICAL SHEET

Materials : Polypropylene, Nylon, Polyester, PTFE

Standard widths:  330mm, 460mm, 500mm, 650mm, 700mm, 1000mm, 1400 mm (others on request)

Standard lengths: 100 meters, 250 meters

Weight / m²: 70 g/m2 , 100 g/m2 , 400 g/m2 , 420 g/m2 ( others on request)

Filtration fineness: from 10µ to 100µ (others on request)

Product Description: With a wide range of filter rolls for industrial filtration in terms of technical fabrics and dimensions, we meet most of your filtration needs.

Areas of application: our filter rolls equip your belt filters for filtration on your surface treatment baths. These natural synthetic materials meet the requirements of alkaline and acidic environments.

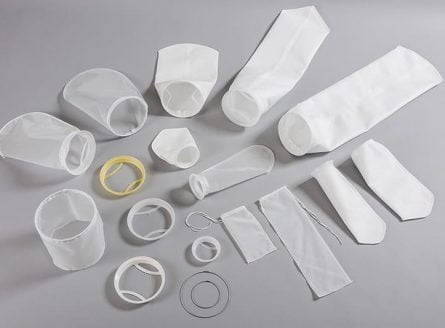

Filter bags

TECHNICAL SHEET

Materials : Polypropylene,

Materials : Polypropylene, Nylon, Polyester, Felt, PTFE

Opening type: Thermo-welded plastic ring, Galvanized steel ring, Stainless steel ring, Plastic ring, collar, strap, rope.

Dimensions: on request

Filtration fineness: from 0.5µ to 200µ (others on request)

Product Description: With a wide range of filter bags in terms of materials offered, custom dimensions and attachment systems, we meet the majority of your filtration needs with this media.

Areas of application: filter bags are used in electrolytic surface treatment, in the chemical industry, the automotive industry (cataphoresis), electronics, the food and pharmaceutical industry, paints and varnishes, water treatment and the mechanical industry (cutting oil).

Nylon, Polyester, PTFE

Standard widths:  330mm, 460mm, 500mm, 650mm, 700mm, 1000mm, 1400 mm (others on request)

Standard lengths: 100 meters, 250 meters

Weight / m²: 70 g/m2 , 100 g/m2 , 400 g/m2 , 420 g/m2 ( others on request)

Filtration fineness: from 10µ to 100µ (others on request)

Product Description: With a wide range of filter rolls for industrial filtration in terms of technical fabrics and dimensions, we meet most of your filtration needs.

Areas of application: our filter rolls equip your belt filters for filtration on your surface treatment baths. These natural synthetic materials meet the requirements of alkaline and acidic environments.
